PowerQuest

switch panel

PowerQuest controls all vehicle functions through Touch Screen and Solid State Switch Module.

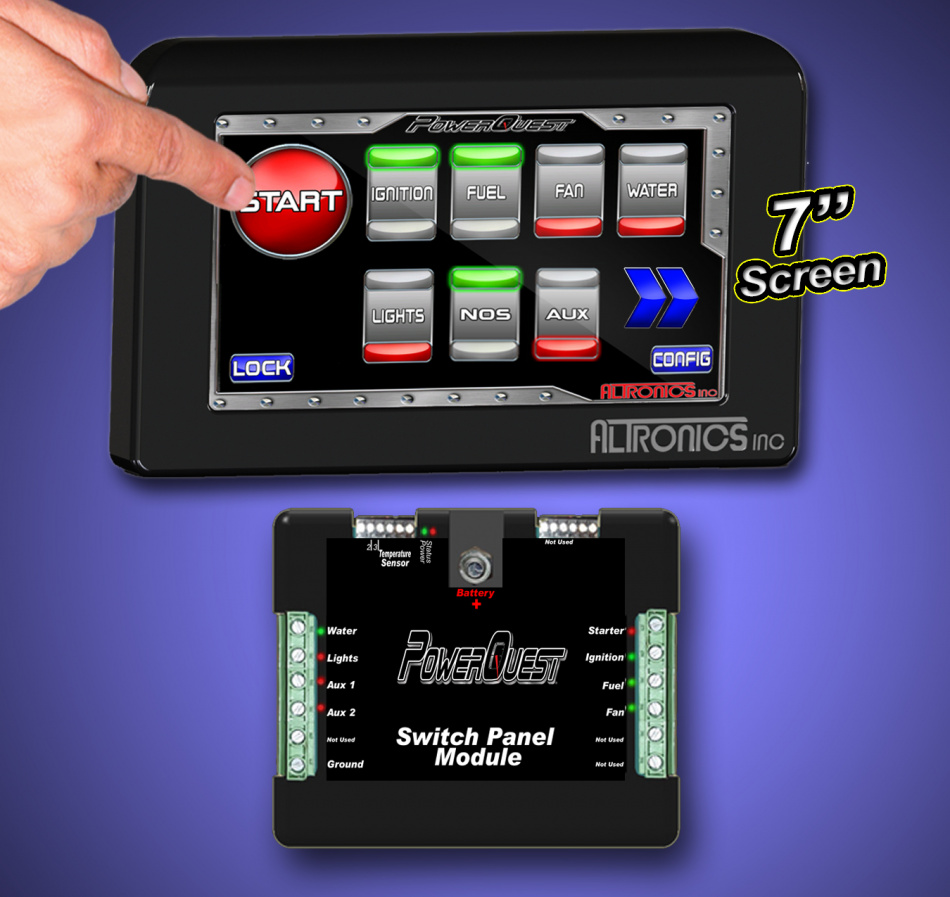

PowerQuest PDM (Power Distribution Module) & Switch Panel is a complete stand alone system that replaces primitive mechanical “rocker” switches with state of the art Touch Screen using solid state digital switching technology.

Altronics has designed this system to help reduce all the costly options and features associated with multi-platform systems. This stand alone switch panel allows you to Press one button to start car, operate multiple electrical devices including water, fuel, fan, lights, ignition and other options.

  • Automatic switches can be time delayed to turn on after Start button is pressed. This allows for easier engine cranking before ignition and fuel is enabled with less risk of flooding.
  • Resettable solid state fuse allows you to preset 1-30amps on each channel. (No more replacing blown fuses)

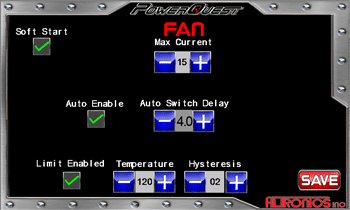

  • Switches can be Limit programmed. (Ex. Water pump will turn on when the Engine Temperature is above 120 degrees)
  • Switches feature soft start option to eliminate in-rush current when load is first turned on.
  • Switches can be set to Momentary or Toggle.
  • Works with gloves.
  • 12 and 16 volt compatible.
  • 3 Trigger inputs.  (Low Oil Pressure, Lean out, ext..)
  • 8 Channel Standard.
  • Optional 16 channel expandable/upgradable.

Latest update now allows for every switch to be custom programmed.  Choose from 50 different switch graphics or custom label.  Each switch can be set for Momentary, Latching switch and for lighting control Pulse, Burst, or SOS patterns are available.

PowerQuest is completely setup through included touch screen display and does not require a PC.

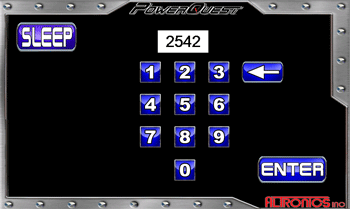

Programmable coded Lock Screen prevents access to system Each channel is individually configurable

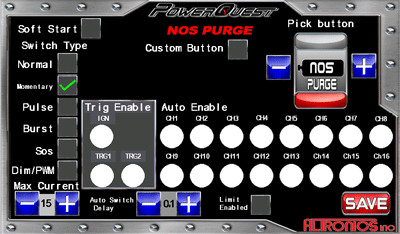

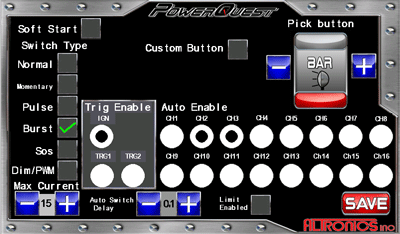

Example: NOS Purge configurable Example: LIGHT BAR Burst configurable
Specifications:
Touch Screen Dimensions - 8"x5"x0.75"
Switch Panel Module - 6"x5"'1.25"
8 channels 1-30 amp user defined and custom programmable
16 channel version allows for 16 user defined channels 1-30 amp
Water Temperature sensor included 0-300 degrees.



Click here for video->

SKUImageNamePrice
ALT-PQSWP
PowerQuest Switch Panel



PowerQuest Touch Screen Switch Panel

Price: $699.99
ALT-PQSWP-16
ALT-PQSWP-16 PowerQuest 16 System

PowerQuest with 16 Channels.

Price: $989.99
ALT-PQSWP-16U
PowerQuest 16 Channel Upgrade

PowerQuest 16 channel upgrade.  Allows for a total of 16 channels.  Does not include updates that may be required for older systems.

Price: $449.99
ALT-PQSWP-RBMNT-1.625
Roll Bar Mount 1.625"

Roll bar mount for touch screen 1.625"   other sizes available - contact for more info

Price: $99.99
ALT-PQSWP-RBMNT-1.250
Roll Bar Mount 1.250"

Roll bar mount for touch screen 1.250"   other sizes available - contact for more info

Price: $99.99
ALT-PQSWP-WP Image Not Available ALT-PQSWP-WP

Apply Water resistant sealing to Touch Screen and Module.

Helps protect system from moisture, does Not allow product to be submerged in water and it is not recommended to directly hose off or pressure wash.

Product is NOT warranted from water damage.

Price: $74.99
