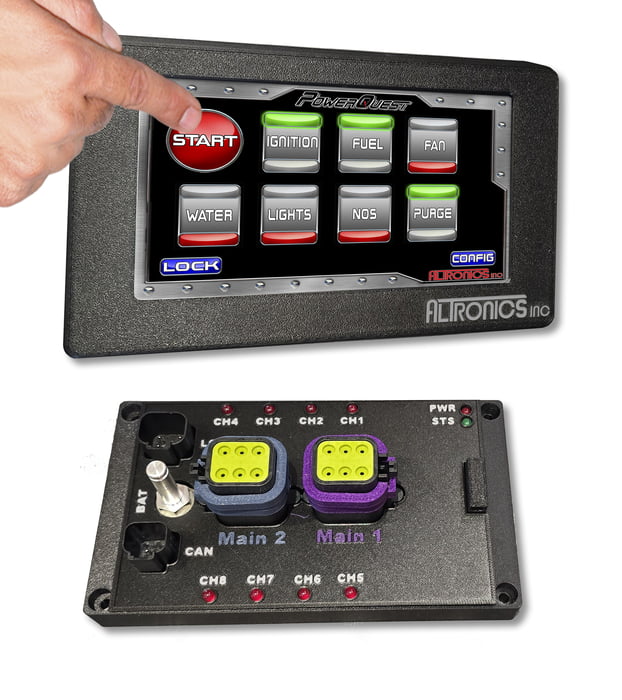

PowerQuest Touch Screen Switch Panel
PowerQuest PDM (Power Distribution Module) & Switch Panel is a complete stand-alone system that replaces primitive mechanical "rocker" switches with state-of-the-art Touch Screen using solid-state digital switching technology.
8 Channel system.
30 amps per channel
Customize each channel
10' Harness included
Battery Cable not included
PowerQuest controls all vehicle functions through Touch Screen and Solid State Switch Module.
PowerQuest PDM (Power Distribution Module) & Switch Panel Touch Screen is a complete stand-alone system that replaces primitive mechanical "rocker" switches with state-of-the-art Touch Screen using solid-state digital switching technology.
Altronics has designed this system to help reduce costly options and features associated with multi-platform systems. This stand-alone switch panel allows you to press one button to start the car and operate multiple electrical devices including water, fuel, fan, lights, ignition, and other options.
Robust harness featuring color coded and keyed pluggable connectors allow for 12 awg wiring. Harness plugs are workable to allow for removal of unused channels or for changing wire size for appropriate amp load for controlled components.
Every switch can be custom programmed. Choose from 50 different switch graphics or custom label. Each switch can be set for Momentary, Latching switch and for lighting control Pulse, Burst, or SOS patterns are available.- Automatic switches can be time delayed to turn on after Start button is pressed, allowing easier engine cranking before ignition and fuel is enabled with less risk of flooding.
- Resettable solid state fuse allows you to preset 1-30 amps on each channel. (No more replacing blown fuses)
- Switches can be limit programmed (e.g., Water pump will turn on when the engine temperature is above 120 degrees)
- Switches feature soft start option to eliminate in-rush current when load is first turned on.
- Switches can be set to Momentary or Toggle.
- Lighting control Dimming, Pulse, Burst, or SOS patterns
- Works with gloves.
- 12 and 16 volt compatible.
- 3 Trigger inputs (Low Oil Pressure, Lean out, etc.)
- 10' 12awg wire harness
- Coolant Temperature Sensor
- 8 Channel Standard
- Optional 16 channel expandable/upgradable
Available in either a 7" or 5" Touch Screen |
Additional Module for 16 Channel Control
|
Choose from Radlock Quick Disconnect Battery Terminal or Threaded battery post. |
Includes Color coded 12AWG harness (10' standard, Custom lengths available)
|
Optional Battery cable 10'. Terminated with Radlock or 5/16" eyelit.
|
| PowerQuest is completely setup through included touch screen display and does not require a PC.
|
| Programmable coded Lock Screen prevents access to system  |
| Each channel is individually configurable  Example: NOS Purge configurable |
|
Example: LIGHT BAR Burst configurable |
Specifications:
- 7" Touch Screen Dimensions - 8"x5"x0.75"
- 5" Touch Screen Dimensions - 5.25"x4"x0,75"
- Switch Panel Module - 6"x4"x1.5"
- 8 channels 1-30 amp user defined and custom programmable
- 16 channel version allows for 16 user-defined channels 1-30 amp
- Water Temperature sensor included 0-300 degrees
