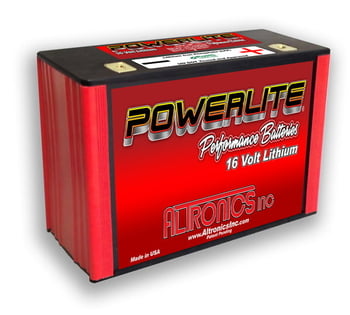

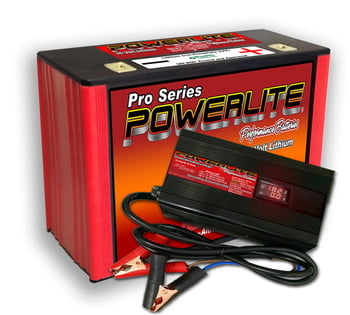

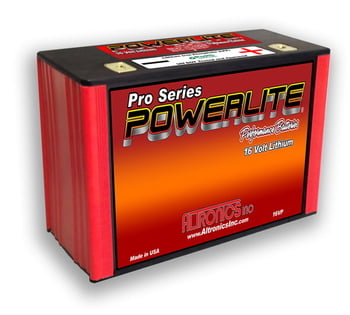

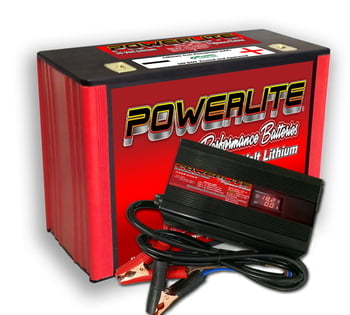

16 Volt Lithium Batteries
POWERLITE Lithium Batteries are the latest technology in extremely Lightweight High Power batteries.
POWERLITE Pro Series features advanced Battery Management System that completely controls all battery functions.
- Pro Series BMS protects from under/over charge, short circuit, over temperature, low voltage cutoff, and fully balance maintains battery.
- Pro Series includes a 4 year warranty.
- Only Lithium batteries with a BMS provide protection.
- Batteries claiming Internal "Balancers", Fuses, or Low voltage disconnects do NOT provide BMS protection.
- Caution using any Lithium battery without a BMS!
POWERLITE Lithium Benefits over Lead Acid
- Up to 7 times lighter
- Life expectancy of up to 10 years (2000 Charge Cycles - assumes typical 70% DOD and proper maintenance.)
- Charges up to 10 times faster
- Much more stable voltage and current output
- 16 Volt - faster cranking, runs pumps/fans more efficiently, always provides proper spark voltage
- A "Green" Product - Environmentally Safe
1 Year Warranty - Must be purchased with POWERLITE charger
4 Year Warranty - Pro Series Only - Must be purchased with POWERLITE charger
Note: This battery CAN be used to bump motor with starter when setting valves without any issues!
POWERLITE SPECIFICATIONS
Dimensions 9.7"x3.8"x8.2" (Half group 34 size)
| PART # | Max AMPS | Lithium Ah | Lead Acid Equivalent Ah | Weight |
|---|---|---|---|---|
| 16VP1600 | +1200 | 16* | 32 | ~7.5 lbs |
| 16VP2000 | +1680 | 20* | 42 | ~9.25 lbs |
| 16V920 | +1200 | 16* | 32 | ~7 lbs |
| 16V1200 | +1680 | 20* | 42 | ~8.75 lbs |
By Application (Drag Racing)
| POWERLITE Part# | Application (Works best with!) |
|---|---|
| 16VP2000 (Pro Series) or 16V1200 40% more power |
Stock, Super Stock, Bracket, Super Street, Super Gas, Super Comp, 10" tire, Top Sportsman/Dragster, Pro Stock/Mod. With or Without Alternator Non-Towed (Driven to/from lanes/pits). High compression engine (due to cam shaft overlap).
|
| 16VP1600 (Pro Series) or 16V920 |
Bracket, Import, Super Street, Super Gas, Super Comp, 10" tire. Alternator equipped vehicle. Low Compression Engine < 10:1 V4, V6 or V8 engines 350 and smaller Class where car is towed to lanes and to pits (typically started few times) |
Run Time Capacity
| Battery Size | Lithium Ah | Run Time (25A) | Run Time (100A) |
|---|---|---|---|
| 16VP1600 | 16 | 38 | 9.5 |
| 16VP2000 | 20 | 50 | 12.5 |
| 16V920 | 16 | 38 | 9.5 |
| 16V1200 | 20 | 50 | 12.5 |
Recharge Time
Note: A typical run should only deplete cell approx 25%
| Battery Size | Recharge Time 25% Depleted | Recharge Time Fully Depleted | Charger Type |
|---|---|---|---|
| 16VP1600 | 9 | 40 | 25 AMP |
| 16VP2000 | 12 | 49 | 25 AMP |
| 16V920 | 9 | 40 | 25 AMP |
| 16V1200 | 12 | 49 | 25 AMP |

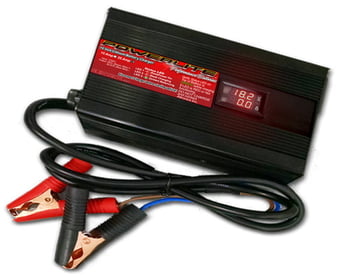

Charger Dimensions 8"x4.5"x2.75" Weighs 4 lbs!
PowerLite Billet Aluminum Battery Mount Weighs 1lb
