For the ultimate in 16‑volt performance, choose the PowerLite Pro Series.
Built in the USA with premium LithiumWerks (A123) cells and a fully protective BMS, these PROVEN batteries deliver exceptional longevity, safety, and cranking power. Many units have surpassed 10 years of service with minimal capacity loss.
Backed by the industry’s best 4‑year full warranty (never pro‑rated), the Pro Series sets the standard for reliability in racing and performance applications.

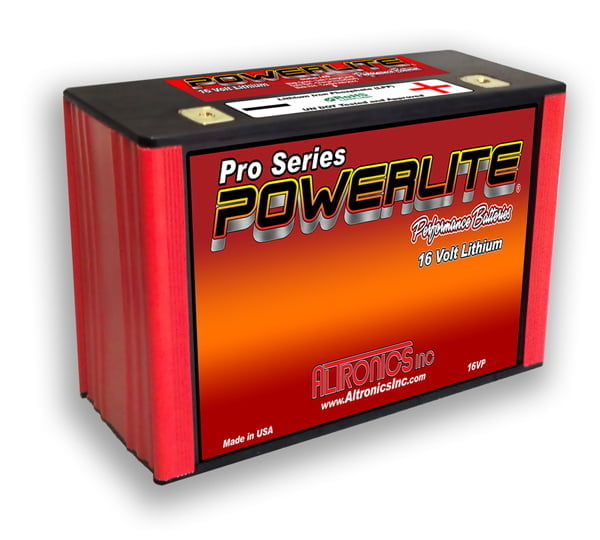

PowerLite Pro Series LiFePo4 Battery 16V 16Ah Battery with BMS - 7.5 Lbs
*4 Year Full Battery Warranty*
Ships ground only, Cannot ship via Post Office
Altronics Inc now offers two PowerLite 16‑volt lithium batteries: the Pro Series and the Standard Series.
PowerLite Pro Series batteries are proudly built in the USA using premium LithiumWerks (A123) LiFePO₄ cells, known for their unmatched cycle life. power, and reliability. Each pack includes a full‑protection BMS with onboard status LEDs, giving users real‑time visibility into battery health.
We’ve been building these packs for over a decade, and many of the units produced 10 years ago are still in service today—performing at roughly 95% of their original capacity. Their true lifespan is still unknown because they simply haven’t worn out yet. The Pro Series also includes an industry‑leading 4‑year full replacement warranty (never pro‑rated).
PowerLite Standard Series. The Standard Series delivers the same BMS protection and safety features in a slightly larger enclosure and weighs about one pound more. Capacity is 20Ah—just one amp‑hour below the Pro Series—while still providing similar cranking performance.
After two years of field testing, the Standard Series has shown excellent results and comes with a 1‑year warranty.
POWERLITE Lithium batteries feature an advanced Battery Management System that completely controls all battery functions.
- POWERLITE BMS protects from under/over charge, short circuit, over temperature, low voltage cutoff, and fully balance maintains battery.
- Only Lithium batteries with a BMS provide protection.
- Batteries claiming Internal "Balancers", Fuses, or Low voltage disconnects do NOT provide BMS protection.
- Caution using any Lithium battery without a BMS!
POWERLITE Lithium Benefits over Lead Acid
- Up to 7 times lighter
- Life expectancy of up to 10 years (2000 Charge Cycles - assumes typical 70% DOD and proper maintenance.)
- Charges up to 10 times faster
- Much more stable voltage and current output
- 16 Volt - faster cranking, runs pumps/fans more efficiently, always provides proper spark voltage
- A "Green" Product - Environmentally Safe
1 Year Warranty - PowerLite Standard - Must be purchased with POWERLITE charger
4 Year Warranty - PowerLite Pro Series Only - Must be purchased with POWERLITE charger
Note: This battery CAN be used to bump motor with starter when setting valves without any issues!
POWERLITE PRO SERIES & STANDARD SPECIFICATIONS
Dimensions 9.7"x3.8"x8.2" (Half group 34 size) PRO Series
Dimensions 9.0"x5.5"x8.5" (group 34 size) Standard Series
| PART # | Max AMPS | Lithium Ah | Lead Acid Equivalent Ah | Weight |
|---|---|---|---|---|
| 16VP1600 | +1200 | 16* | 32 | ~7.5 lbs |
| 16VP2000 | +1680 | 21* | 42 | ~9.25 lbs |
| 16V2000 | +1600 | 20* | 40 | ~10 lbs |
By Application (Drag Racing)
| POWERLITE Part# | Application (Works best with!) |
|---|---|
| 16VP2000 (Pro Series) or 16V2000 40% more power | Stock, Super Stock, Bracket, Super Street, Super Gas, Super Comp, 10" tire, Top Sportsman/Dragster, Pro Stock/Mod. With or Without Alternator Non-Towed (Driven to/from lanes/pits). High compression engine (due to cam shaft overlap).
|
| 16VP1600 (Pro Series) | Bracket, Import, Super Street, Super Gas, Super Comp, 10" tire. Alternator equipped vehicle. Low Compression Engine < 10:1 V4, V6 or V8 engines 350 and smaller Class where car is towed to lanes and to pits (typically started few times) |
Run Time Capacity
| Battery Size | Lithium Ah | Run Time (25A) | Run Time (100A) |
|---|---|---|---|
| 16VP1600 | 16 | 38 | 9.5 |
| 16VP2000 | 21 | 50 | 12.5 |
| 16V2000 | 20 | 45 | 10.5 |
Recharge Time
Note: A typical run should only deplete cell approx 25%
| Battery Size | Recharge Time 25% Depleted | Recharge Time Fully Depleted | Charger Type |
|---|---|---|---|
| 16VP1600 | 9 | 40 | 25 AMP |
| 16VP2000 | 12 | 49 | 25 AMP |
| 16V2000 | 11 | 46 | 25 AMP |
Charger Dimensions 8"x4.5"x2.75" Weighs 4 lbs!
PowerLite PRO SERIES Billet Aluminum Battery Mount Weighs 1lb
