Switch Panels/PDM

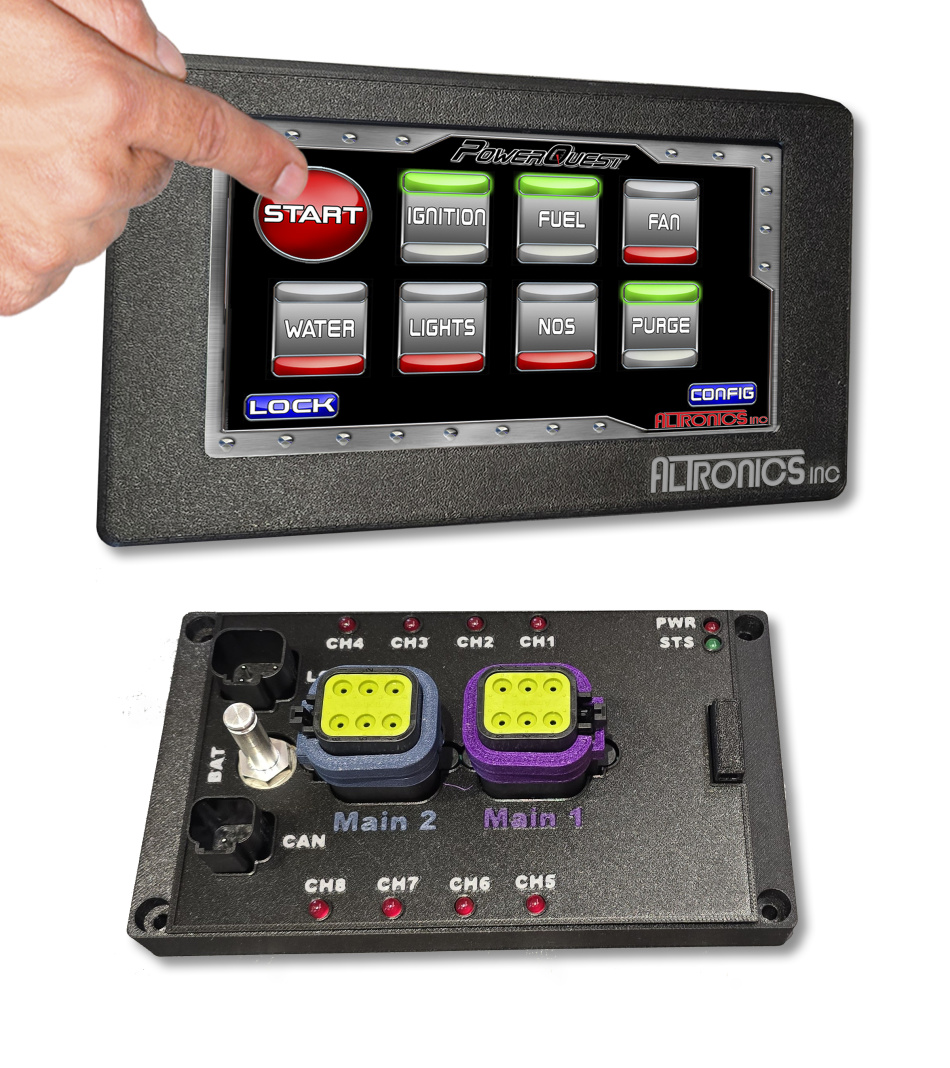

PowerQuest controls all vehicle functions through Touch Screen and Solid State Switch Module.

PowerQuest PDM (Power Distribution Module) & Switch Panel is a complete stand-alone system that replaces primitive mechanical ?rocker? switches with state-of-the-art Touch Screen using solid-state digital switching technology.

Altronics has designed this system to help reduce costly options and features associated with multi-platform systems. This stand-alone switch panel allows you to press one button to start the car and operate multiple electrical devices including water, fuel, fan, lights, ignition, and other options.

• Automatic switches can be time delayed to turn on after Start button is pressed, allowing easier engine cranking before ignition and fuel is enabled with less risk of flooding.
• Resettable solid state fuse allows you to preset 1-30 amps on each channel. (No more replacing blown fuses)
• Switches can be limit programmed (e.g., Water pump will turn on when the engine temperature is above 120 degrees)
• Switches feature soft start option to eliminate in-rush current when load is first turned on.
• Switches can be set to Momentary or Toggle.
• Works with gloves.
• 12 and 16 volt compatible.
• 3 Trigger inputs (Low Oil Pressure, Lean out, etc.)
• 8 Channel Standard

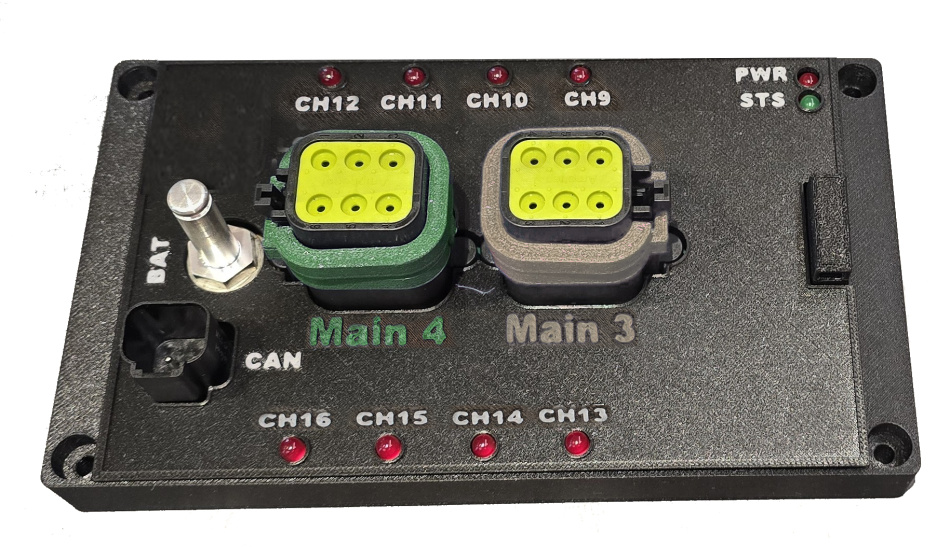

• Optional 16 channel expandable/upgradable

Latest update now allows for every switch to be custom programmed. Choose from 50 different switch graphics or custom label. Each switch can be set for Momentary, Latching switch and for lighting control Pulse, Burst, or SOS patterns are available.

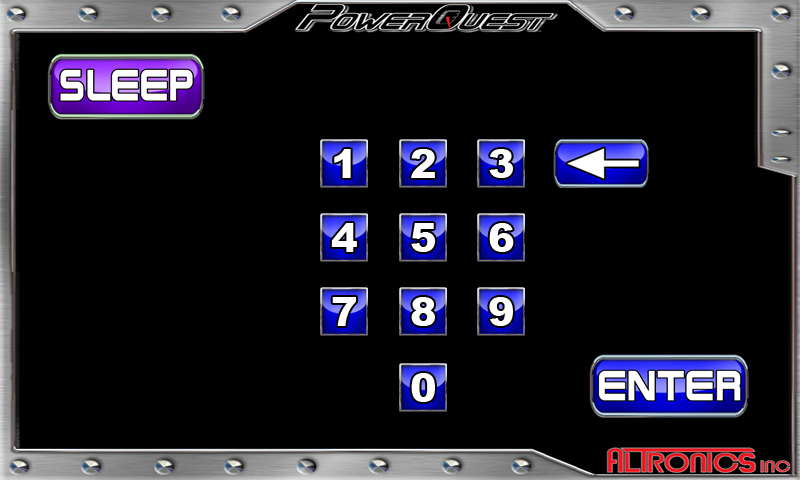

PowerQuest is completely setup through included touch screen display and does not require a PC.

Specifications:

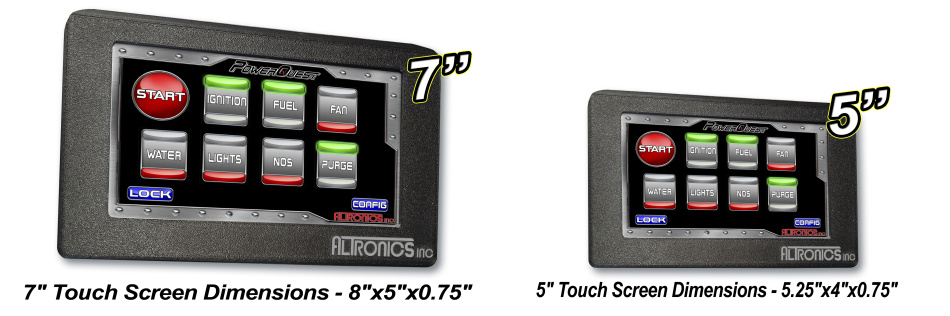

• Touch Screen Dimensions - 8"x5"x0.75"
• Switch Panel Module - 6"x5"x1.25"
• 8 channels 1-30 amp user defined and custom programmable
• 16 channel version allows for 16 user-defined channels 1-30 amp
• Water Temperature sensor included 0-300 degrees
