12 Volt Lithium Battery

Click Here- Important Lithium Battery Information

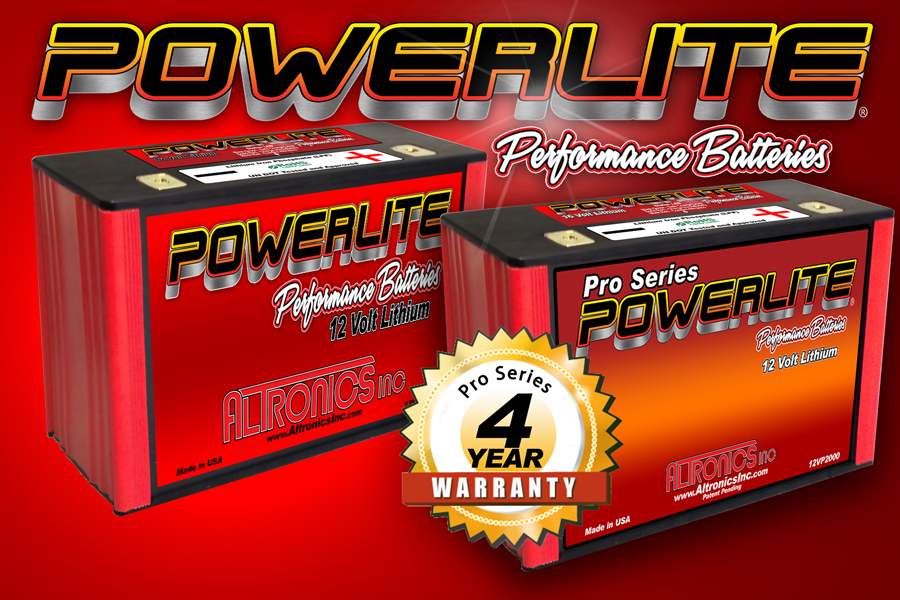

Powerlite Lithium autmotive batteries

POWERLITE Lithium Batteries are the latest technology in extremely Lightweight High Power batteries.

POWERLITE Pro Series features advanced Battery Management System that completely controls all battery functions.

  • Pro Series BMS protects from under/over charge, short circuit, over temperature, low voltage cutoff, and fully balance maintains battery.
  • Pro Series includes a 4 year warranty.
  • Only Lithium batteries with a BMS provide protection.  Batteries claiming Internal "Balancers", Fuses, or Low voltage disconnects do NOT provide BMS protection.

  •                       Caution using any Lithium battery without a BMS!

POWERLITE Lithium Benefits over Lead Acid:

Up to 7 times lighter
  Life expectancy of up to 10 years (2000 Charge Cycles - assumes typical 70% DOD and proper maintenance. )


Charges up to 10 times faster

  Much more Stable voltage and current output.
  16 Volt -provides faster cranking, runs pumps and fans more efficiently, always provides ignition with proper voltage for peak spark.
  A "Green" Product - Enviromentally Safe


1 Year Warranty - Must be purchased with POWERLITE charger

4 Year Warranty - Pro Series Only - Must be purchased with POWERLITE charger

Note: This battery CAN be used to bump motor with starter when setting valves without any issues!

POWERLITE SPECIFICATIONS

Dimensions 9.7"x3.8"x8.2" (Half group 34 size)



PART #
Max AMPS
Lithium Ah
Lead Acid Equivalant Ah
Weight
12VP1600
+1200
16*
32
~6 lbs
12VP2000
+1680
20*
42
~8 lbs
12V920
+1200
16*
32
~5.5 lbs
12V1200
+1680
20*
42
~7.5 lbs

* Lithium and Lead Acid Ah ratings differ due to voltage drop characteristics that the two technologies exhibit.





Use the following charts to help determine battery capacity and charger needed for application:

By Application (Drag Racing).

POWERLITE Part#

Application

12VP1600 (Pro Series

or

12V920



Bracket, Import, Super Street, Super Gas, Super Comp, 10" tire.

Alternator equipped vehicle.

Low Compression Engine <12:1

V4, V6 or V8 engines 350 and smaller

Class where car is towed to lanes and to pits: (typically started few times)

12VP2000 (Pro Series)

or

12V1200

No Alternator -No Towing:

Stock, Super Stock, Bracket, Super Street, Super Gas, Super Comp, 10" tire.

High compression engine (due to cam shaft overlap, not necessary static compression ratio).

Multi Stage NOS solenoids used.

Intercooler Fan and Pump (Chiller).

The following chart shows a comparison of run time capacity of the battery sizes against a constant current draw.

Battery Size

Lithium Amp Hours

Run Time (Minutes) 25 AMP

Run Time (Minutes) 100 AMP

12VP1600

16

38

9.5

12VP2000

20

50

12.5

12V920

16

38

9.5

12V1200

20

50

12.5



The following chart shows recharge time of a depleted battery using various amperage chargers.

Note: A Typical run should only deplete cell approx 25%

Battery Size

Recharge Time 25% Depleted (Minutes)

Recharge Time Fully Depleted (Minutes)

   Charger Type

12VP1600

14

55

15 AMP

12VP2000

17

68

15 AMP

12V920

14

55

15 AMP

12V1200

17

68

15 AMP

12VP1600

9

40

25 AMP

12VP2000

12

49

25 AMP

12V920

40

25 AMP

12V1200

12

49

25 AMP

Charger Dimensions 8"x4.5"x2.75" Weighs 4 lbs!  PowerLite Billet Aluminum Battery Mount Weighs 1lb

PowerLite Instructional Video

SKUImageNamePrice
ALT-12VP2000-KIT
ALT-12VP2000-KIT PowerLite Pro Series Battery Kit

PowerLite Pro Series LiFePo4 Battery 12V 20Ah Battery with BMS - 8 Lbs and  25Amp Charger

*4 Year Full Battery Warranty*

Ships ground only, Cannot ship via Post Office

Price: $1,749.99
ALT-12VP2000
ALT-12VP2000 PowerLite Pro Series Battery

PowerLite Pro Series LiFePo4 Battery 12V 21Ah Battery with BMS - 8 Lbs

*4 Year Full Battery Warranty*

Ships ground only, Cannot ship via Post Office

Price: $1,549.99
ALT-12VP1600-KIT
ALT-12VP1600-KIT PowerLite Pro Series Battery Kit

PowerLite Pro Series LiFePo4 Battery 12V 16Ah Battery with BMS - 6 Lbs and  25A mp Charger

*4 Year Full Battery Warranty*

Ships ground only, Cannot ship via Post Office

Price: $1,649.99
ALT-12VP1600
ALT-12VP1600 PowerLite Pro Series Battery

PowerLite Pro Series LiFePo4 Battery 12V 16Ah Battery with BMS - 6 Lbs

*4 Year Full Battery Warranty*

Ships ground only, Cannot ship via Post Office

Price: $1,449.99
ALT-12V1200-KIT
POWERLITE 12 Volt 1200 Lithium Battery Kit

PowerLite LiFePo4 Battery 12V 1200 Amp 7.5 Lbs and 25 Amp Charger

This battery does NOT have a BMS and offers no protection. We Recommend PRO Series version.

Ships ground only, Cannot ship via Post Office

Price: $1,249.99
ALT-12V1200
POWERLITE 12 Volt 1200 Lithium Battery

PowerLite LiFePo4 Battery 12V 1200 Amp 7.5 Lbs

This battery does NOT have a BMS and offers no protection. We Recommend PRO Series version.

Ships ground only, Cannot ship via Post Office

Price: $1,049.99
ALT-12V920-KIT
POWERLITE 12 Volt 920 Lithium Battery Kit

PowerLite LiFePo4 Battery 12V 920 Amp 5.5 Lbs and 25 Amp Charger

This battery does NOT have a BMS and offers no protection. We Recommend PRO Series version.

Ships ground only, Cannot ship via Post Office

Price: $1,199.99
ALT-12V920
POWERLITE 12 Volt 920 Lithium Battery

PowerLite LiFePo4 Battery 12V 920 Amp 5.5 Lbs

This battery does NOT have a BMS and offers no protection. We Recommend PRO Series version.

Ships ground only, Cannot ship via Post Office

Price: $999.99
ALT-12VCHR25A
12V 25A Powerlite Lithium Charger

12 Volt 25 Amp Powerlite Lithium Charger with Voltage and Amperage Display Compatible with Standard and PRO SERIES

Price: $299.99
ALT-PWRLT-MT
POWERLITE Mount

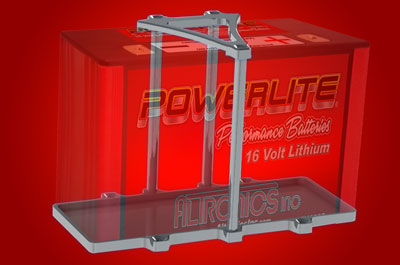

PowerLite Billet Aluminum Battery Mount 1lb

Price: $199.99
ALT-PWRLT-QCONN
PowerLite Quick Connect

Quick Connect Kit - Contains 2 connector assemblies.

Price: $49.99
ALT-PWRLT-POST
Battery Post Adapter

SAE PowerLITE Battery Post Adapter Kit

Price: $28.99
ALT-12VALT140
Powerlite 12 Volt Alternator Natural

PowerLite 12 volt 140 amp alternator

This alternator features an adjustable regulator so output can be set to 14.6 volts required by Powerlite Lithium 12 volt batteries.

Straight mount 6.61"

6 groove pulley

Natural color

Price: $219.99
ALT-12VALT140B
Powerlite 12 Volt Alternator Black

PowerLite 12 volt 140 amp alternator

This alternator features an adjustable regulator so output can be set to 14.6 volts required by Powerlite Lithium 12 volt batteries.

Straight mount 6.61"

6 groove pulley

Black color

Price: $229.99
ALT-12VALT140C
Powerlite 12 Volt Alternator Chrome

PowerLite 12 volt 140 amp alternator

This alternator features an adjustable regulator so output can be set to 14.6 volts required by Powerlite Lithium 12 volt batteries.

Straight mount 6.61"

6 groove pulley

Chrome color

Price: $269.99
ALT-VPULLEY Image Not Available ALT-VPULLEY

Alternator V belt style pulley

Price: $49.99
